Rear end of control board
by Zeus on Jan.19, 2010, under

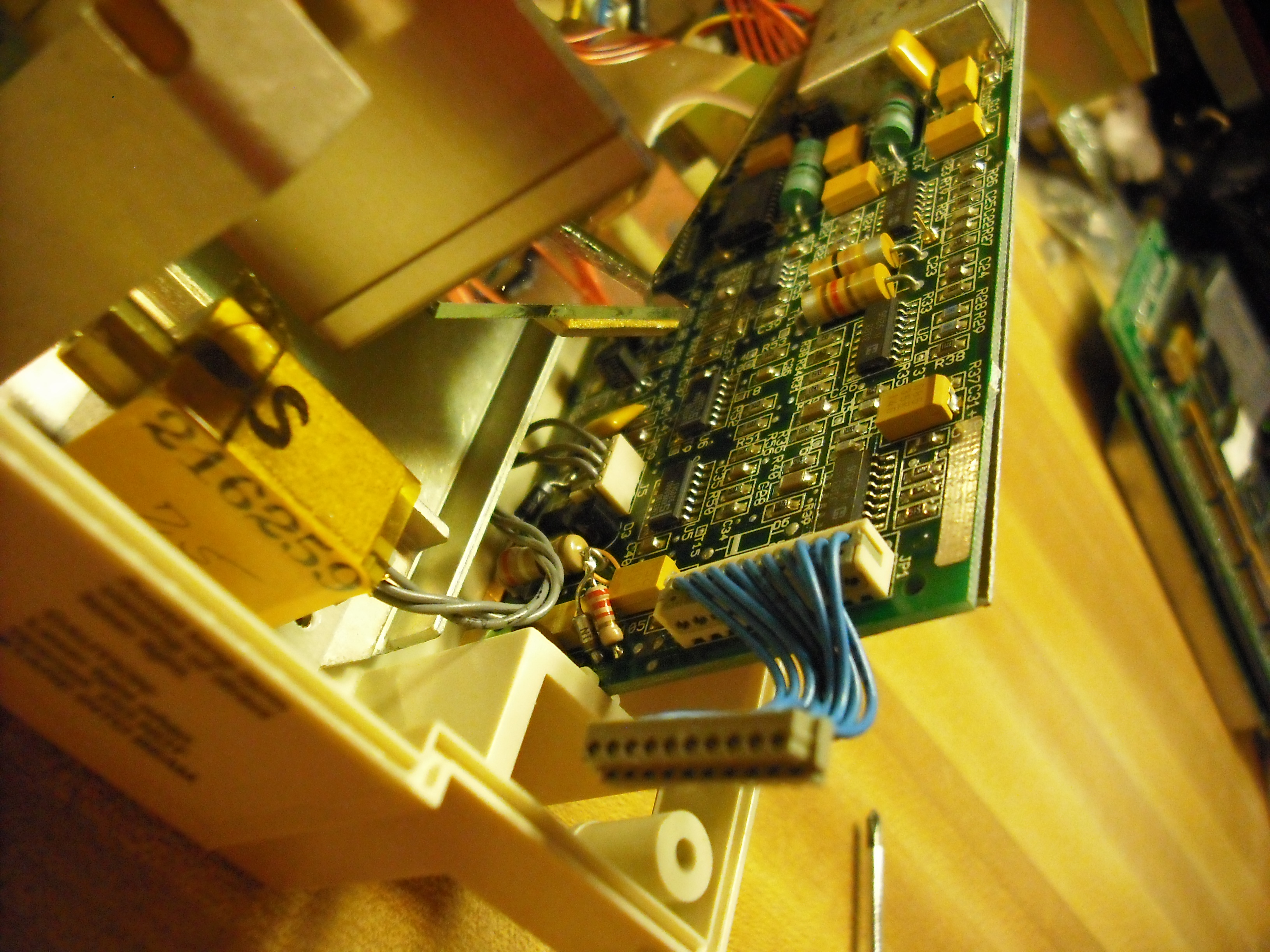

This is the rear end of the control board, showing the blue cable for connection to the power supply board and the connection for the laser diode.
